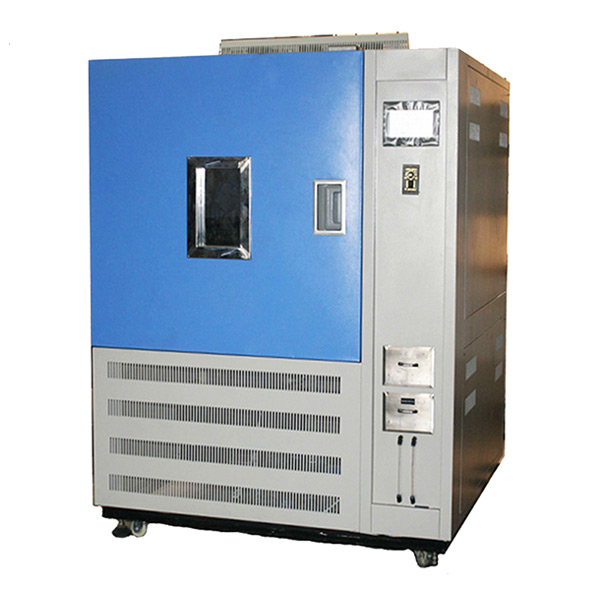

Xenon Lamp Aging Test Chamber
下載
資料 點擊
觀看
發(fā)送詢問
資料 點擊
觀看
Xenon lamp aging test chamber uses Xenon arc lamps that simulate the full sunlight spectrum to reproduce destructive light waves in different environments, providing environmental simulation and accelerated testing for scientific research, product development and quality control.
| Model | YXEL-216 | YXEL-343 | YXEL-512 | YXEL-1000 |
|---|---|---|---|---|
| Inside dimensions W*H*D (cm) | 60*60*60 | 70*70*70 | 80*80*80 | 100*100*100 |
| Outside dimensions W*H*D (cm) | 120*170*110 | 130*180*120 | 140*190*130 | 150*200*140 |
| Temperature range | RT~70℃ | |||
| Temperature fluctuation | ±2℃ | |||
| Humidity fluctuation | 80~98%RH,30~98%RH | |||
| Rain duration | 0~99.99H (adjustable) | |||
| Wave length | 290~800nm | |||
| Radiation intensity | 1000w/m2±200 | |||
| Radiometer | Stamdard configuration | |||
| Distance between sample holder and lamp | 300~375mm | |||
| Sample holder Rotating speed | 1~5r/min | |||
| Exterior chamber material | Steel plate with powder coating | |||
| Inner chamber material | SUS#304 | |||
| Cycling system | Single cycle, centrifugal fan, split air duct structure | |||
| Control system | Touch screen programmable controller | |||
| Protection device | Overpressure, leakage, phase loss, over temperature, water shortage | |||
| Power supply (V) | AC 3ψ380V 60/50Hz | |||
| Standard device | Lamp 1pcs, guaze 1pcs | |||
| Test standard | GB/T14522-2008, GB16422.2-1999 | |||
| Customization service | Non-standard or special requirements are all welcome | |||
